Stainless Steel Rotary Dryer For Rice Protein

  • Stainless Steel Rotary Dryer For Rice Protein
  • Stainless Steel Rotary Dryer For Rice Protein
  • Stainless Steel Rotary Dryer For Rice Protein
  • Stainless Steel Rotary Dryer For Rice Protein

Stainless Steel Rotary Dryer For Rice Protein

    Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
    Terms of Trade: FOB,CFR,CIF
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days
    Packaging: Container Loading
    Productivity: 0.85-15t/h
    Brand: Mingyuan
    Transportation: Ocean
    Place of Origin: Henan, China
    Supply Ability: 5 sets per month
    Certificate: CE, ISO
    HS Code: 8430310000
    Port: Qingdao Port,Tianjin Port,Shanghai Port

Basic Info

Model No.: 2X4M

Product Description

For the rotary drum dryer, Mingyuan can provide two types, one is single pass rotary dryer, and the other one is 3 pass rotary dryer, which can be used for drying various kinds of materials, when the rotary drum dryer is used for food materials, the material needs to be use stainless steel, so the rotary dryer can be called Stainless Steel Rotary Dryer, or Food Rotary Dryer, Mingyuan can provide the complete drying plant for food and the other materials, such as chemicals, slime, coal, sand, etc.


Specification of Stainless Steel Rotary Dryer / 3 Pass Rotary Dryer /Food Rotary Dryer
Specification φ 2.0× 6m φ 2.5× 6.5m φ 2.7× 7m φ 3× 7m φ 3.2× 7m φ 3.6× 8m φ 4.2× 8.5m
Diameter(m) 2.0 2.5 2.7 3 3.2 3.6 4.2
Length(m) 6 6.5 7 7 7 8 8.5
Shell volume (m3) 18.84 31.89 40.5 49.46 56.26 81.38 118
Shell rotary speed(rpm) 3-10 3-10 3-10 3-10 3-10 3-10 3-10
Material stay time (min) 12-30 12-30 12-30 12-30 12-30 12-30 12-30
Material moisture (%) 6-25 6-25 6-25 6-25 6-25 6-25 6-25
Mafter moisture after drying(%) ≤ 1 ≤ 1 ≤ 1 ≤ 1 ≤ 1 ≤ 1 ≤ 1
Max inlet temperature 750-900 750-900 750-900 750-900 750-900 750-900 750-900
Production capacity (T/H) Ore slag 20-25 25-30 30-35 35-10 40-45 50-65 70-85
Flyash 10-17 17-21 20-25 23-27 25-30 30-45 45-63
Sand 20-27 25-40 27-45 30-45 35-50 55-75 75-99
Motor model Yr160m-4 Yr132m-4E Yr160m-4 Yr160m-4 Yr132m-5E Yr160m-4E Yr160m-4E
Motor power (kw) 7.5× 2 11× 2 7.5× 4 7.5× 4 11× 4 15× 4 18.5× 4
Speed reducer model XWD-6 XWD-6 XWD-6 XWD-6 XWD-6 XWD-8 XWD-8
Speed ratio(I) 17-29 17-29 17-29 17-29 17-29 17-29 17-29
Weight (T) 25 32 35 38 43 57 77
Introduction and application of the stainless steel rotary dryer / 3 pass rotary dryer / food rotary dryer
Brief Introduction
For the 3 pass rotary dryer
Raw material with 10-25% moisture content is suitable for this dryer,and not sticky for the drum or lifting blade. The temperature of air flow is less than 70 degree. When there is any special requirement for high temperature drying, the front part of inner drum and lifting blade could be replaced by heatproof steel plate. The product moisture content is adjustable according different requests, even below 1-0.5%.




Applications
industrial small silica sand triple pass rotary drum dryer used rotary sand dryer price used for drying certain humidity range granular materials, such as
1.casting sand which used in dry-mixed mortar and foundry industry
2.small granular clay used in construction and cement industry
3.small granular material in chemical industry which no chemical change, not afraid of heat and dust pollution
such as coal, blue carbon, fly ash, sand, water slag, river sand, quartz sand, slag, clay etc.









Features of the 3 pass rotary dryer
1.The dryer drum made of wear resistant manganese plate, service life 3-4 times than common steel plate
2.Original moisture contains <15%, after drying final moisture contain 0.5-1%. First choice for cement slag powder, pre-mixed mortar projects.
3. The thermal efficiency is more than 40% higher than that of traditional single drum dryer
4. Fuel applicable white coal, bituminous coal, coal gangue, oil, steam. Raw material required <40 mm bulk, aggregate, powder material
5.reduce 60% working place, 60% civil work compare with normal single drum dryer. Easy operation.
6.No air leakage phenomenon, solved the sealing problem.
7.discharge temperature <60 ºC,could storage directly in the silo, no need cooling section.
8. Outer barrel temperature <60 ºC, the exhaust gas temperature < 120 ºC, dust removal equipment could serve 2 times longer.
9.reduce 2/3 coal, 40% electric consumption. Need <9kg coal to dry one-ton raw material
Stainless steel rotary dryer

Features of Stainless Steel Rotary Dryer / 3 Pass Rotary Dryer /Food Rotary Dryer

1. It can use chemical gypsum (Free gypsum dehydration, phosphogypsum etc) to fry β-semi-water gypsum directly.
2. From craft process, guarantee the requests of frying temperature and time which should make precise control in roasting the gypsum.
3. The discharging of work machine is designed rationally, when operation, there is no dust pollution.
4. When interval feeding and discharging, it can be banked fire and shut down furnace. The stove fire can be put into normal production after 3 minutes by again opening furnace.
5. Matched gas stove or fluidized bed furnace is used for supplying heat, the waste heat of tail gas can be used recycling. (Boil water, heat the air.





Our Service For Stainless Steel Rotary Dryer / 3 Pass Rotary Dryer /Food Rotary Dryer

1.Offering overall technology and business consultation services;
2.Proposing the most suitable scheme and equipment for our customer;
3.Designing and producting machine according to the special demands of clients;
After-sales Service
1.Carefully checking machine in every working procedure, quality comes first;
2.Assisting our clients for foundation construction of equipments;
3.Dispatching engineers to install and debug equipments,training the first-line operators on site;
4.Regularly visit clients to solve production problems and providing our technology support.
We have more than 15 years experience, support you best before and after sales service.Quality is first and top Pursuit of our company.

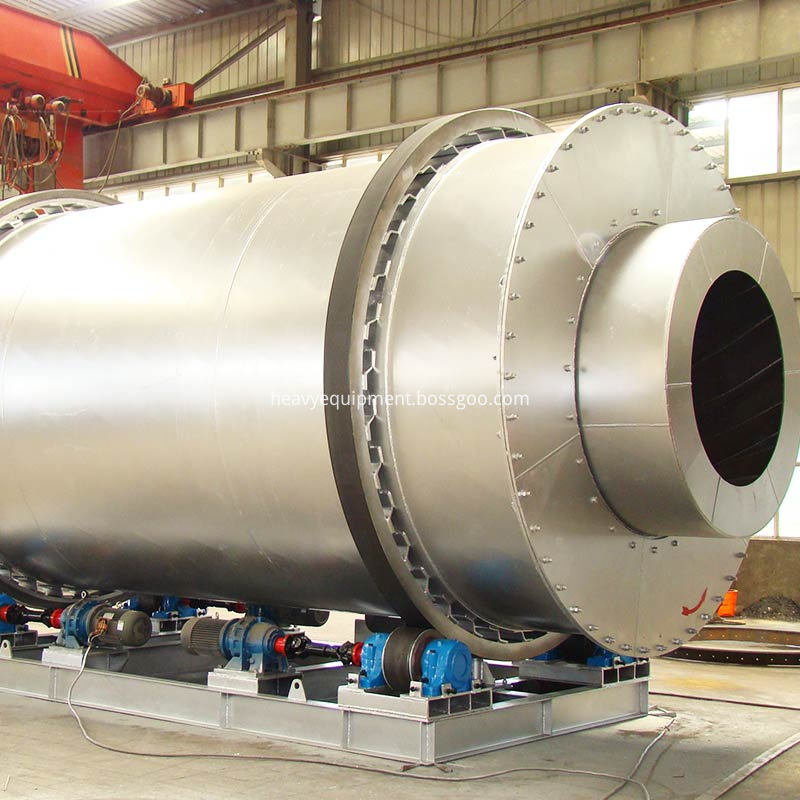

Stainless steel rotary dryer

Food rotary dryer3 pass rotary dryer
